2022 2023 Northstar

1051 Views 17 Replies 6 Participants Last post by Zonk, 2 mo ago

Zonk

Discussion Starter · 4 mo ago

How many of you Northstar owners have put a backup light on your machine, and where did you put it?
Thanks
Zonk

1 - 18 of 18 Posts

brmccolley

· #2 · 4 mo ago (Edited)

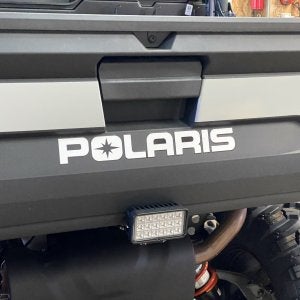

I installed a reverse activated backup light with an “L” shaped bracket at the center, lower edge, of the tailgate.

www.rangerforums.net

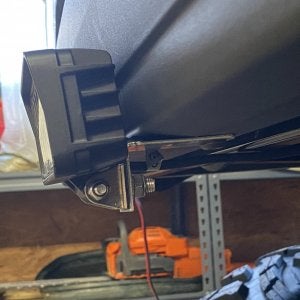

“L” bracket for back up light

www.rangerforums.net

www.rangerforums.net

www.rangerforums.net

Back up light

https://smile.amazon.com/gp/product/B097PQTX78/ref=ppx_yo_dt_b_asin_title_o04_s02?ie=UTF8&psc=1

www.rangerforums.net

www.rangerforums.net

There is very little room between the light and the muffler when the tailgate is lowered.

It doesn’t block the camera view of my hitch when I’m aligning with equipment.

It stays clean from mud thrown from rear tires.

I preferred this style of light, but it needed a relay to resolve the light from being partially lit when not turned on.

See less See more

Zonk

Discussion Starter · #3 · 4 mo ago

I think I might mount my back up light on the outer shield of the exhaust. I’ll also purchase a relay switch so when it goes back into drive, the light instantly goes off.
I read that the wire hanging down behind the exhaust is the power to feed the backup light when the transmission is placed in reverse. Is this correct?

amac

· #4 · 4 mo ago

Zonk said:
I think I might mount my back up light on the outer shield of the exhaust. I’ll also purchase a relay switch so when it goes back into drive, the light instantly goes off.
I read that the wire hanging down behind the exhaust is the power to feed the backup light when the transmission is placed in reverse. Is this correct?

I’ve been planning a similar setup, and from reading here, it is recommended to use a relay if you’re going to supply power from that wire. It’s intended use was for a backup beeper from what I understand.

There’s another user on the forum who sells pre-wired harnesses (with relay) that are plug and play, worth checking out:

Polaris Ranger Reverse Light Harness AUTO ONLY(NEW VERSION) – Automotive Custom Lighting

automotivecustomlighting.com

Zonk

Discussion Starter · #5 · 4 mo ago

amac said:
I’ve been planning a similar setup, and from reading here, it is recommended to use a relay if you’re going to supply power from that wire. It’s intended use was for a backup beeper from what I understand.

There’s another user on the forum who sells pre-wired harnesses (with relay) that are plug and play, worth checking out:

Polaris Ranger Reverse Light Harness AUTO ONLY(NEW VERSION) – Automotive Custom Lighting

automotivecustomlighting.com

Who’s the user?

amac

· #6 · 4 mo ago

Zonk said:
Who’s the user?

Info here:

www.rangerforums.net

BACKUP LIGHT

I bought a cheap backup light that plugs right into factory plug don't like, want to replace with two three inch cubes will the factory backup plug handle the extra watts, this is on a 2021 ranger xp 1000 northstar.

www.rangerforums.net

www.rangerforums.net

CrazyElecE

· #7 · 4 mo ago

Zonk said:
I think I might mount my back up light on the outer shield of the exhaust. I’ll also purchase a relay switch so when it goes back into drive, the light instantly goes off.
I read that the wire hanging down behind the exhaust is the power to feed the backup light when the transmission is placed in reverse. Is this correct?

An exhaust shield doesn't sound like a very solid mounting point.

Zonk

Discussion Starter · #8 · 4 mo ago

CrazyElecE said:
An exhaust shield doesn't sound like a very solid mounting point.

I’ll have to check to see if it’s solid enough. I’m still weighing my options.
Zonk

larrygugliotta

· #9 · 2 mo ago (Edited)

Not a NorthStar but maybe an idea to consider. I mounted my backup lights on the 1" square tube just under the tailgate. Drilled and tapped into the tube. Offset just enough so mud does not sling on them that much. And they do not hit muffler when cargo bed is fully raised.

Automotive tire Tire Motor vehicle Vehicle Automotive exterior

See less See more

Reactions: 2

larrygugliotta

· #10 · 2 mo ago

Closeup how they are attached, single socket head cap screw, M8x1.25 I believe. Drilled and tapped into the square tube. Does not hit tire when bed is raised, and far enough away from exhaust pipe. Used bracket that came with the LED cubes.

Tire Automotive tire Motor vehicle Automotive lighting Vehicle

See less See more

Reactions: 1

Zonk

Discussion Starter · #11 · 2 mo ago

Isn’t there a wire already at the rear so when you put it in reverse there’s power for those lights?

larrygugliotta

· #12 · 2 mo ago

According to my schematic there is. I put a switch in and ran wires not knowing there is a connector there already. Oh well at least I can turn the lights on anytime I want. I just noticed a week ago there is a capped off connector, schematic calls it "reverse beeper"

WyoMud

· #13 · 2 mo ago

2

I put it on my Thumper Fab rear bumper!

Automotive parking light Tire Wheel Vehicle Car

Tire Wheel Vehicle Hood Automotive tire

See less See more

Zonk

Discussion Starter · #14 · 2 mo ago

WyoMud said:
I put it on my Thumper Fab rear bumper! View attachment 30610 View attachment 30611

looks nice and bright! can you post a picture of schematic showing where the wire is?

WyoMud

· #15 · 2 mo ago (Edited)

Zonk said:
looks nice and bright! can you post a picture of schematic showing where the wire is?

I’ve searched everywhere on the schematic and can’t find anything on it. Going to try to get you a picture of it when I get back home, around 3pm mountain time!

larrygugliotta

· #16 · 2 mo ago

3

FWIW....

The reverse beeper connector has 2 wires, both come from the ECM

Handwriting Rectangle Font Parallel Pattern

Rectangle Schematic Line Font Parallel

Rectangle Schematic Font Line Parallel

See less See more

WyoMud

· #17 · 2 mo ago

2

Hopefully theses will help too! Blue connector in the second picture.

Wheel Automotive tire Automotive lighting Motor vehicle Automotive design

Tire Motor vehicle Automotive tire Hood Tread

See less See more

Reactions: 1

Zonk

Discussion Starter · #18 · 2 mo ago

WyoMud said:
Hopefully theses will help too! Blue connector in the second picture.
View attachment 30625 View attachment 30626

I’m sure this wi help m,thanks!
